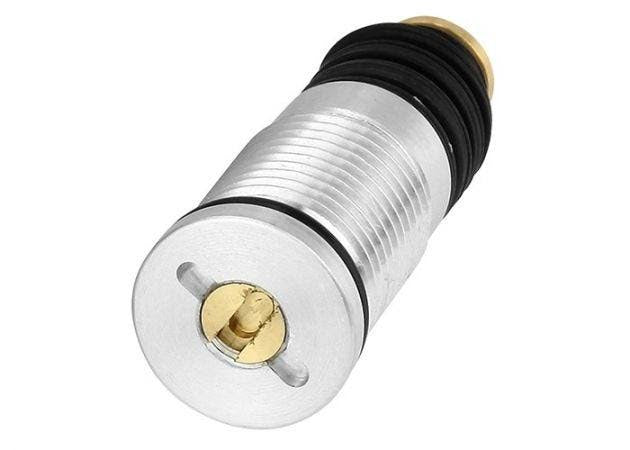

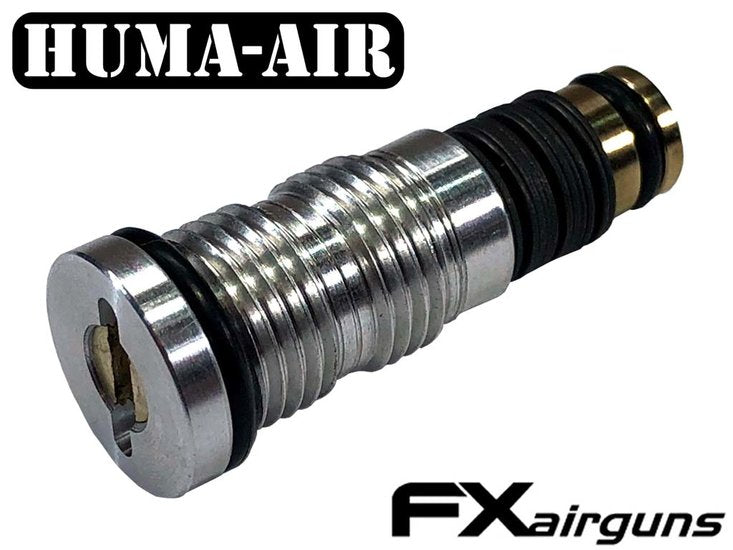

FX Impact & FX Crown Gen 3 Tuning Regulator by Huma-Air
high pressure range 100-165bar
is specially designed as a "one on one" replacement regulator for your FX Impact and FX crown. Unfortunately the fixed limited space in the FX Impact and Crown action was not sufficient for our standard Huma-Air Regulator design, so we had to comply our design to the ratio's used by FX.
Nevertheless we have accomplished to make a great replacement regulator what will solve the know issues of the factory regulator.
This is the Gen3 model what is compatible with factory models with 16 mm long pistons and 10 mm belleville disk springs.
The benefits of the Huma-Air, FX Impact and FX Crown Gen 3 tuning regulator are:
- The recovery time in between shots is much faster compared to the factory regulator.
- This Huma-Air FX impact or Crown regulator can be adjusted higher in pressure from the outside while the rifle is under pressure.
- Equal as the factory reg, if you want to lower the pressure, the rifle needs to be de-pressurized first otherwise the valve get damaged.
- By using another type of material for the valve and piston, there is no way you can damage the piston because of faulty pressure adjustments.
- We also supply some extra valves, so in case you adjust the pressure to the wrong side, and you damage the valve, it can be replaced without any extra costs.

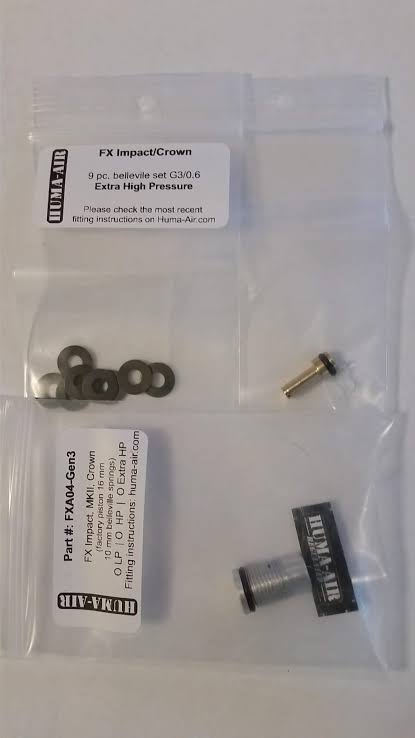

When you order your Huma-Air, FX Impact or FX Crown Gen 3 tuning regulator you will receive:
- A pressure scale in Bar’s on the regulator, for fine-tuning or re-adjustment
- We will include a “Huma-Air regulated” breech sticker
- Fitting instructions as pdf download
Huma-Air Quality Control
Huma Air regulators are CNC produced out of high grade aircraft aluminum and bronze. To guarantee a perfect product, every regulator is individually assembled, tested in a computerized simulation program and adjusted to the requested pressure.
We only use high-end materials and our belleville springs are designed for critical applications to achieve the highest repeat accuracy. This gives our regulators a repeat cycle less than 1% difference.
Huma Air provides a 2-year warranty on their regulators. Excluded from warranty are shipping costs and parts that are subject to normal wear and tear such as o-rings and valve discs.
Pressure settings of the Huma-Air, FX Impact or FX Crown Gen 3 tuning regulator
The design of the tuning regulator makes it posible for setting it exactly to your wishes while placed in your FX Impact or FX Crown by watching the output pressure gauge on you rifle.
We have currently three pressure ranges for the FX Impact or FX Crown Gen3 regulator available:
- The High Pressure range, 100-165 Bar, what will suit all calibers within the normal FAC range.
- The Extra High Pressure range, 145-190 Bar for more extreme purposes and very good for the slugs and heavy pellets
- A low pressure ranges what will suit the sub 12 ft/lbs versions perfetly
Please note: you need to do the stacking of the belleville springs on the piston yourself according to the manual, because we do not want to risk them to fall off the piston during shipping.
