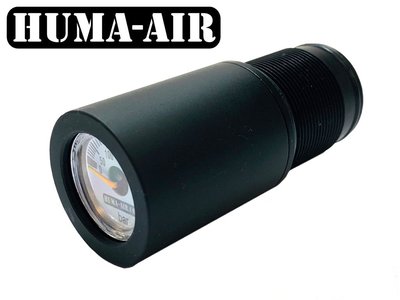

Huma-Air CZ200 & Air arms S200 Quickfill With Pressure Gauge
A popular addition for the CZ200 that allows you to check the pressure in the main pressure reservoir. They are easy to fit yourself, you simply remove your old quickfill or gauge, then screw the new quickfill with pressure gauge into your air cylinder. It replaces the quick fill on your rifle so that you have quick fill and a pressure gauge combined.
The gauge body is made out of anodized aluminum in a matte black finish what suits the rifle very well. It has a rotating dust cover over the fill port to keep dirt out, which also protects the pressure gauge when you are using the rifle. There are no parts to remove when filling, simply twist the cover, insert the fill probe and fill the rifle. A stainless steel, quick-fill fill probe can be chosen optionally or you can also use a standard BSA fill probe.
The pressure gauge is sealed with an o-ring under the treads. This o-ring makes it possible to align the gauge perfectly so it will always looks great. There is an extra o-ring supplied what could be used if the alignment with the standard ring is not perfectly.
Just remove the thick standard ring underneath the gauge and replace it for the slightly thinner version.
The pressure indicator is rated to 250 bar, but you should never exceed the factory advised fill pressure of you rifle.
The total length of the quick fill is approximately 36.5 mm measured from the end of the pressure tube. Because there are many different lengths of cylinders and barrels, it is advisable to check whether this does not disturb the placement of a silencer.
No fitting instructions are sent out with the gauges.
