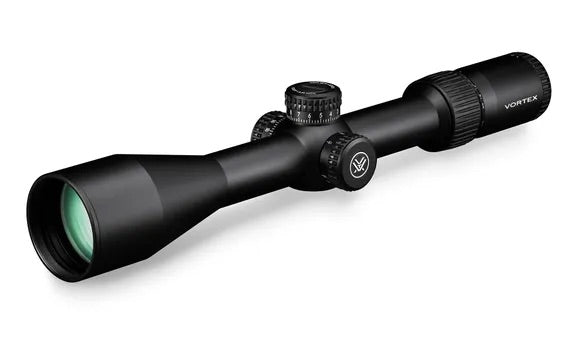

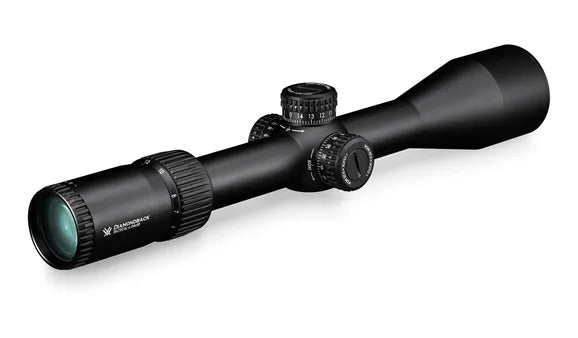

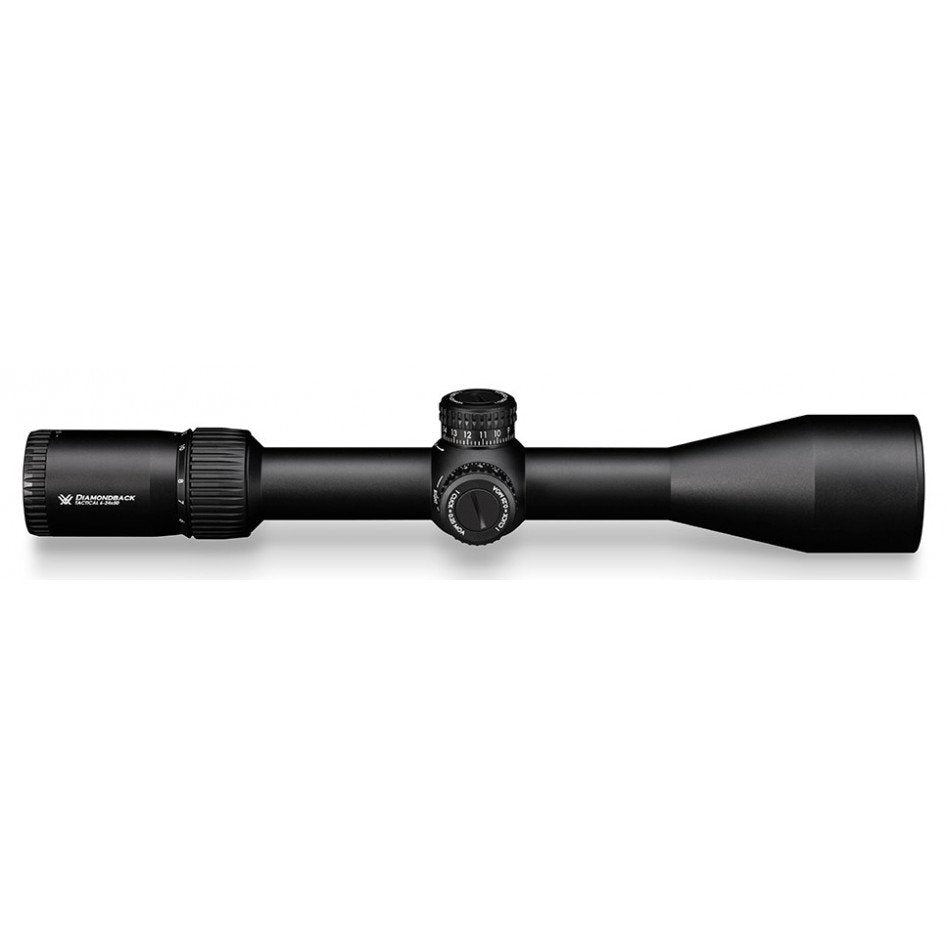

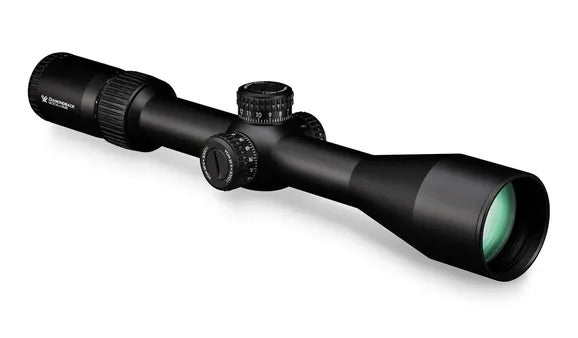

Vortex Diamondback Tactical 6-24x50 FFP Rifle Scope - EBR-2C MOA Reticle
Included in the Box
- Lens Covers
- Lens Cloth
- Sunshade
Magnification 6-24x
Objective Lens Diameter 50 mm
Eye Relief 3.9 inches
Field of View 18-4.5 ft/100 yds
Tube Size 30 mm
Turret Style Tall Exposed Tactical
Adjustment Graduation 1/4 MOA
Travel Per Rotation 15 MOA
Max Elevation Adjustment 65 MOA
Max Windage Adjustment 65 MOA
Parallax Setting 10 yards to infinity

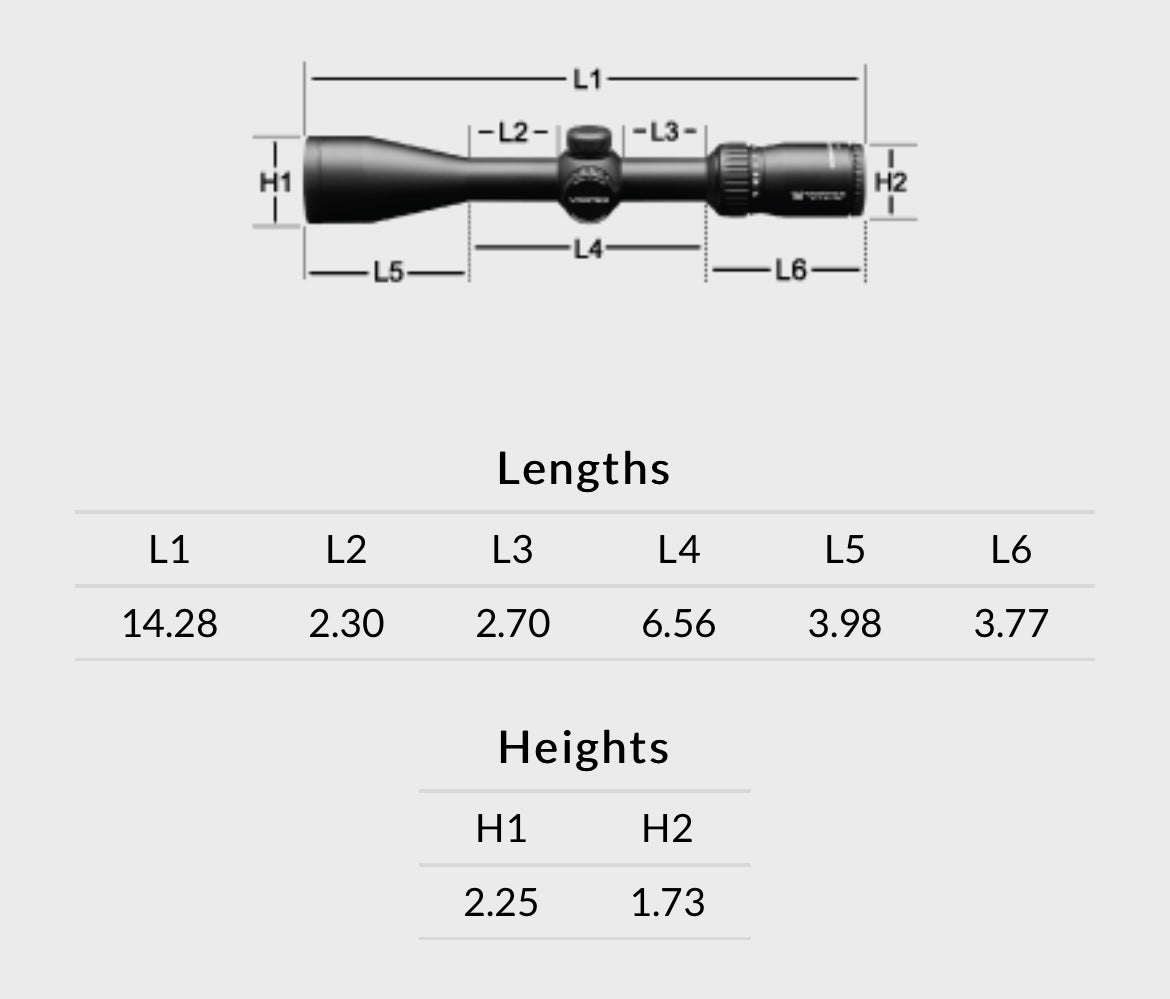

Length 14.28 inches
Weight 24.6 oz
OPTICAL FEATURES
XDâ„¢ Lens Elements Extra-low dispersion (XD) glass increases resolution and color fidelity, resulting in crisp, sharp images.
Fully Multi-Coated Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.
First Focal Plane Reticle Scale of reticle remains in proportion to the zoomed image. Constant subtensions allow accurate holdover and ranging at all magnifications.
Glass-Etched Reticle Allows for intricate reticle design. Protected between two layers of glass for optimum durability and reliability.
CONSTRUCTION FEATURES
Tube Size 30 mm diameter provides maximized internal adjustment and strength.
Aircraft-Grade Aluminum Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
Waterproof O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments.
Fogproof Nitrogen gas purging prevents internal fogging over a wide range of temperatures.
Shockproof Rugged construction withstands recoil and impact.
Hard Anodized Finish Highly durable hard-coat anodization provides a low-glare matte surface and helps camouflage the shooter's position.

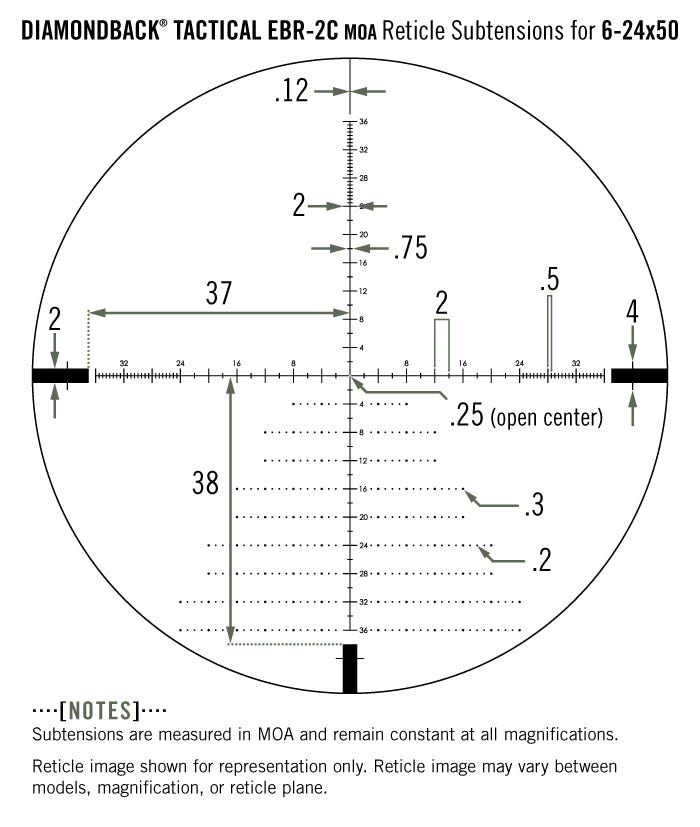

RETICLE
EBR-2C (MOA)
Hash-marked ranging reticle using MOA based subtension lines for ranging, holdover, and windage corrections. Letters refer to reticle subtensions listed in chart below.
